JC250 플로우 포장기

이 기계의 기능

One back seal, one web of film, no pouch magazine.

The JC250 is the compact horizontal flow wrapper of the JC line. It pulls laminate from a roll, folds it into a pillow pack with a back seal around your product, and closes the ends with a single sealing jaw — 35 to 150 packs a minute for products up to 100 mm wide and 300 mm long.

The trade-off: web width versus film cost. The 250-class web (90-240 mm) keeps both the reel bill and the machine footprint small, and a single-jaw cutter is the simplest sealing architecture there is to keep alive. What you give up is width: once your product is wider than 100 mm, you need the JC420, not a bigger reel. Every pack feature beyond the basic back seal — hang holes, custom seal patterns, special cutters — is ordered against your product rather than built in.

가장 적합한 제품

이것들을 잘 구동하며 — 각각에 필요한 것은 다음과 같습니다

• Biscuits, bread and mooncake portions → sealed at pillow-pack speed with the film path routed to suit the product
• Boxed and blister-packed pharma → secondary wrap around blister cards and small boxes at up to 150 packs/min
• Switches, spoons, cards and hard goods → a back seal is all the protection rigid items need
• Low-profile items from 5 to 30 mm tall → within the sealing envelope without format changes
• Retail multipacks → counted groups wrapped straight off the infeed

이 파우치 스타일들이 어떻게 생겼는지 잘 모르시겠나요? 저희의 파우치 종류 안내 각 가방 스타일의 설명이 붙은 도면을 보여줍니다.

구성 및 옵션

Routed around your product, not the other way round

• Film path: film runs above or below the product, chosen per product so the seal never crosses a fragile face
• Hole punching: Euro slot or round hang holes cut inline
• Custom work: seal patterns and cutters made to order
• 영화: OPP, PE, PVC and OPP/CPP, PT/PE, KOP/CPP laminates

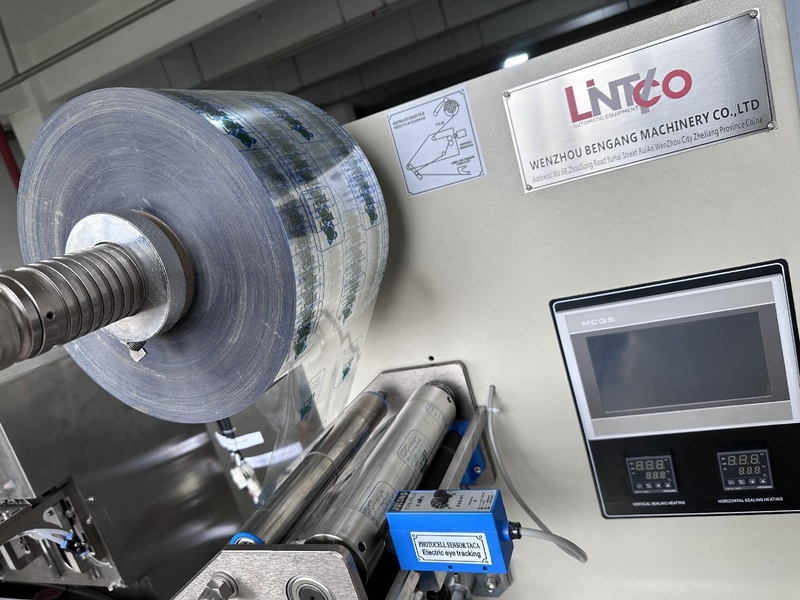

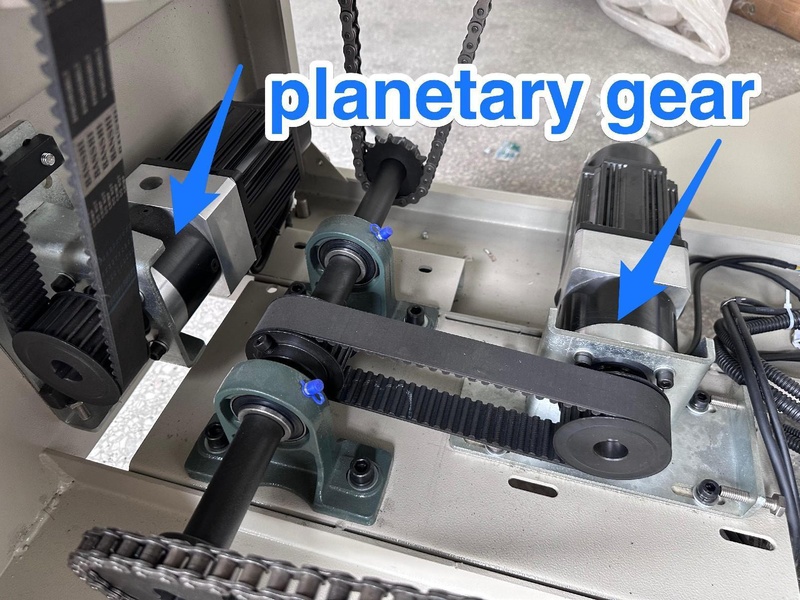

• 드라이브: 3 servo motors with planetary gears; film eye-mark sensor registration
• 대조군: in-house-designed PLC with an MCGS touchscreen

이 기계가 여러분에게 적합한 제품일까요?

구매하기 전에 꼭 물어봐야 할 네 가지 솔직한 질문

• Is your product within 30-100 mm wide, 85-300 mm long and 5-30 mm tall? That is this machine’s envelope.
• Do you need more than 150 packs a minute from one jaw? Then we should talk about the high-speed tier, not stretch this one.
• Can your floor supply 3.0 kW at 220 V / 50 Hz and tolerate ≤78 dB? That is what it draws and what it sounds like.
• Do you measure sealing by first-pass yield? The rated bag form qualified rate is ≥97% at 15 N/mm² sealing pressure.

자주 묻는 질문

구매자들이 실제로 묻는 질문들.

Film above or below the product — which one?

It depends on the product face you want kept clean and how it feeds. Both paths are available on the same frame; we configure it around your product before the machine ships.

Can it punch hang holes?

Yes — Euro slot or round holes, cut inline. Tell us the hole position at quotation so the tooling is built in from day one.

What yield should I plan around?

The rated bag form qualified rate is ≥97%, with sealing pressure at 15 N/mm². Actual speed depends on your product and film.

JC250 or JC420?

Width. The JC250 seals products up to 100 mm wide from a 240 mm web; the JC420 opens that to 180 mm from a 430 mm web. Same servo architecture, same 35-150 packs/min window.
