Z-버킷 엘리베이터

이 기계의 기능

Product goes up, floor space stays flat.

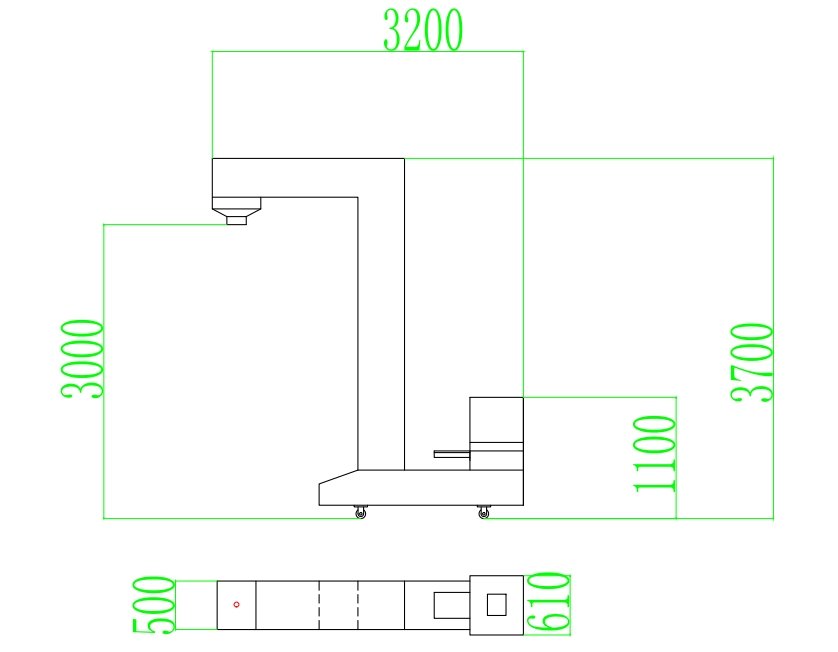

The Z-bucket elevator lifts granules, powders and small pieces from floor level to the infeed of your packing machine along a compact Z-shaped path. Buckets carry the material gently — no pneumatic conveying, no product damage — and discharge directly into the host machine’s hopper.

가장 적합한 제품

그것이 라인에서 제 자리를 차지하는 이유

• Sachet and pouch lines fed from floor-level hoppers — lifts material to the JC or PP machine infeed height
• Fragile products — bucket carrying beats every pneumatic or throw-style feed for breakage control
• Tight layouts — the Z path needs a footprint, not a building

구성 및 옵션

배송 방법을 명시했습니다

• Conveying ability: 3–6 m³/h
• Lifting height: 3–10 m, lifting speed 0–17 m/min
• 전원: 0.75 kW, 220 V
• Gross weight: 428 kg
• 구조: carbon steel with plastic spray or stainless steel; food-contact parts are food-grade plastic

이 기계가 여러분에게 적합한 제품일까요?

구매하기 전에 꼭 물어봐야 할 네 가지 솔직한 질문

• Is your packing machine infeed above shoulder height? Then somebody is currently climbing with product — this removes that job.
• How far is the material point from the machine? The Z path turns a horizontal distance into a vertical lift.
• Is the product fragile or coated? Buckets move it without the attrition of air conveying.
• What height does the host hopper sit at? That single dimension sizes the elevator.

자주 묻는 질문

구매자들이 실제로 묻는 질문들.

Which machines can it feed?

Any of our sachet, pouch and flow-wrap lines — the elevator matches the host machine’s hopper height and appetite.

How gentle is bucket conveying?

Buckets carry material at low speed and discharge by gravity — the standard answer for coated, brittle or blended products that must not segregate.

Carbon steel or stainless steel?

Both are offered; food-contact parts are food-grade plastic in either build, and washdown rooms take the stainless version.

어떤 유지보수가 필요한가요?

A chain, buckets and a drive — lubrication points on a schedule, and a tension check. Few moving parts, on purpose.
